Harvey's is focused on collaboratively working with all architects, engineers, contractors, and trades to ensure the timely delivery and installation of all prefabrication services. Through a tried and tested process the Engineering Division utilizes a Building Information Modeling approach. The life-cycle of the building is focused on and all systems are documented to ensure future servicing needs are minimized. As a technological leader in the industry, Harvey's has been at the forefront of Virtual Design and Construction (VDC) by contributing in local user groups and national conventions. Our commitment to remaining on the leading edge of construction technology has meant that we have been investing in and implementing many of the BIM concepts since before the term was even created, including:

  • Developing 3D models and drawing the complete mechanical systems.
  • Automating and interpreting collision detection before construction through digital reconstruction and as-built conditions.
  • Performing 3D “virtual walkthroughs" through point cloud's with digital fabricated models.
  • Automating project material costs and orders for delivery to site.
  • Maximizing pre-fabrication opportunities for plumbing, hvac, and hydronics.
  • Electronically sharing construction documents, including submittals and O&M data with design team.
  • Reducing RFIs, field changes, and change orders.
  • Creating (and adhering to) detailed schedules for optimal installations and precision.
  • Providing data-rich, 3D as-built drawings, for building life-cycle maintenance and owner documentation.

We incorporate these concepts into our everyday work, and on every project. You will realize the savings in cost, time and reduced errors.

Brian B&W.jpg

Brian D. Nickel

Engineering Division Manager

My name is Brian D. Nickel. I am a graduate from Montana State University’s Graduate School of Architecture. I lead and supervise Harvey’s Engineering Division. I believe that design needs to have fabrication in mind and that through collaboration with the architecture, engineering, and construction industry the design – fabrication – installation process can be achieved successfully.

Ryan Sullivan, PE

Principal - Professional Engineer

My name is Ryan Sullivan, I lead Harvey’s Engineering Division as the Principal Engineer. I believe pushing the industry forward comes from closing the gap between design and construction, this is critical to reduce errors, rework, and inefficiencies. “Because we always do it this way” is not an acceptable design philosophy and because of that I strive to find innovative solutions that encompass all disciplines.


Sean Peterson

Designer

I have enthusiastically taken on the laser scanning services at Harvey’s. I have been working in and around the building industry for more than 15 years, from nearly every angle. I have a strong background in, and passion for, digital technology and have pushed for adoption of new advances in every aspect of the field in which I’ve worked. I have multiple degrees from Montana State University, both a BS in History and AAS in Drafting and Design Technology. I also instruct in the use of AutoCAD and SolidWorks year-round at MSU.

Caleb Cohen.jpg

Caleb Cohen

Designer

I have wanted to be an engineer since I was twelve years old. I am currently studying mechanical engineering at Montana State University. I am always looking for ways to enhance my education by learning new skills outside of the classroom, and executing the skills I have acquired through my education in real world applications.

As a designer I use Solidworks and Revit to turn 2D sketches into accurate 3D renderings. The assemblies can be turned into sub-assemblies for simplification of viewing and assembly. I can display these 3D renderings from almost any angle with exploded and internal views.


Virtual Design & Construction Coordination Examples

INTEGRATED PROJECT DELIVERY

Autodesk's definition of Integrated Project Delivery:

Integrated Project Delivery, or IPD, is a project delivery method distinguished by early collaboration between cross-functional teams through all phases of design, fabrication, and construction. By entering this type of contractual agreement, teams are able to collaboratively harnesses the talents and insights of all participants to optimize project results, increase value to the owner, reduce waste, and maximize efficiency through all phases of design, fabrication, and construction. The entire process, from concept to construction, is defined by early substantive engagement by all key stakeholders.

What are the benefits of IPD?

An IPD project improves project outcomes by changing the way decisions are made, goal are accomplished, and responsibilities are shared. The hallmarks of an IPD project are shared objectives, consensus in decision making, and the use of BIM, or building information modeling.

The American Institute of Architecture created a comprehensive guide to IPD, outlining contract types, processes, and roles.

Read more of this process on Autodesk's website and why we swear by it at Harvey's:

https://www.autodesk.com/solutions/collaborative-project-delivery

 Mechanical room layout with as-built laser scan to ensure the system fits correctly and can be fabricated prior to installation.

Mechanical room layout with as-built laser scan to ensure the system fits correctly and can be fabricated prior to installation.

 Layout of Aquatherm piping for prefabrication of mechanical room piping. We have dialed this process in to a point where we can send the mechanical room layout to Aquatherm's Salt Lake City office and they will spool, prefabricate, and ship our designs to our job sites.

Layout of Aquatherm piping for prefabrication of mechanical room piping. We have dialed this process in to a point where we can send the mechanical room layout to Aquatherm's Salt Lake City office and they will spool, prefabricate, and ship our designs to our job sites.

Fabrication

Prefabrication is the heart of Harvey’s beliefs on mechanical and plumbing contracting. Working closely with our VDC department and their design software capabilities, we ensure that our installations fit precisely and are fabricated with the highest level of quality and care. When schedules are fast, prefabrication allows our team to produce large quantities of product and assemblies offsite in our warehouses, most of the time prior to the building being ready for mechanical and plumbing installation.

Our state of the art fabrication facilities and technology includes:

  • Laser Scanning As-Built conditions
  • State of the art design lab, fabrication warehouses, and equipment.
  • Plumbing Fabrication Warehouse
  • HVAC Warehouse supplied by local suppliers for quicker installation.
  • Sheet Metal Fabrication Warehouse
  • Plasma Cutters, Sheet Metal Folders, Press Brakes, and Shears.
  • Welders

All fabrication operations are supervised by our full time division managers. With separate warehouses available for black pipe, copper, PVC and stainless steel, our fabrication shops can handle any project thrown at them, at any time.

Photo Apr 20, 10 32 10 AM.jpg
Lot 160A - Lewis.jpg

Mechanical Room Layout & Coordination

Laser scanned as-built documentation for optimal mechanical design.

Mobile Upload 16-04-15 10-28-08.JPG

THE PITT TRAINING FACILITY - FABRICATION

We overlaid our mechanical and plumbing systems to a Revit model supplied by the architect. Through direct coordination and collaboration we were able to effectively install our systems more efficiently and accurately.

Tiny Home.png

TINY HOME PREFABRICATED PLUMBING SYSTEMS

Plumbing Design for custom Tiny Homes. Provides a plumbing diagram of all systems for custom multiple layout configurations. The plumbing systems can be prefabricated off-site within the modules and transported to site for full design to fabrication installation.

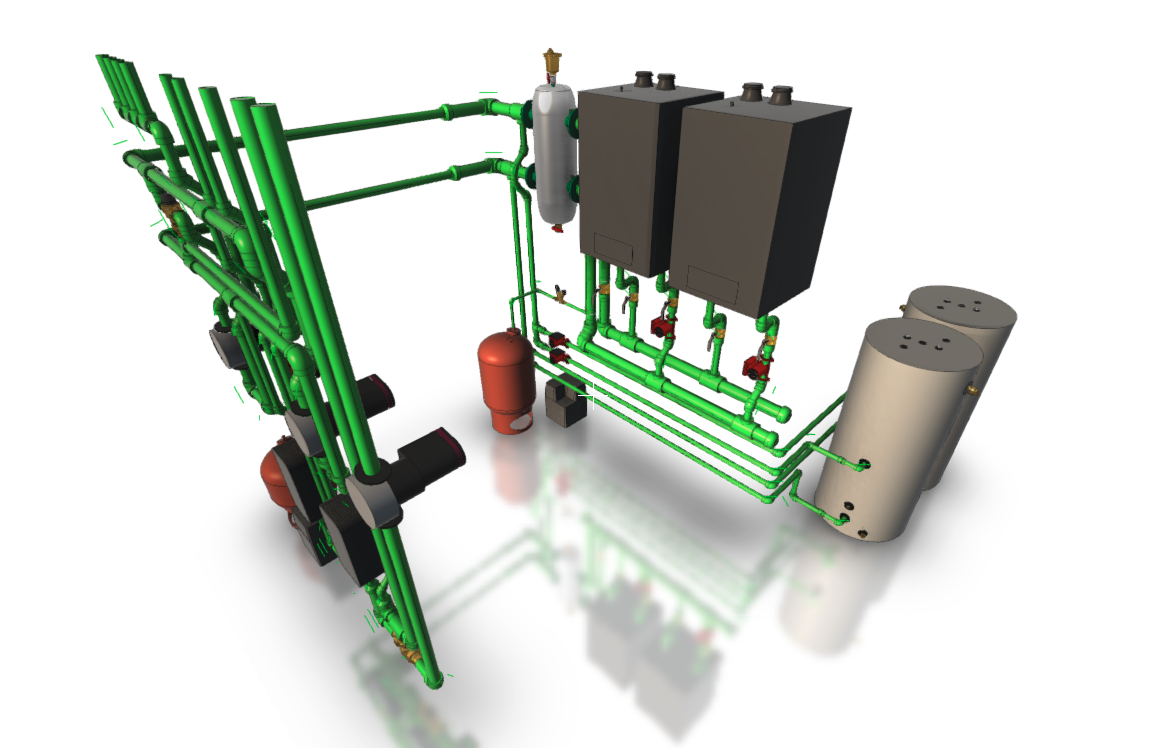

Hydronics Fabrication

Harvey's Hydronics focuses on optimizeing our clients mechanical rooms with systems that organized efficiently.


HARVEY'S RAIN WATER CATCHMENT DESIGN

Let us design your next rain water catchment system.

IMG_0022 (1).JPG

H.V.A.C. Fabrication

Harvey's H.V.A.C. Division has an internal database of components for all of our sheet metal cutting needs. The database is filled with thousands of flat patterns that ensure top notch precision and accuracy.

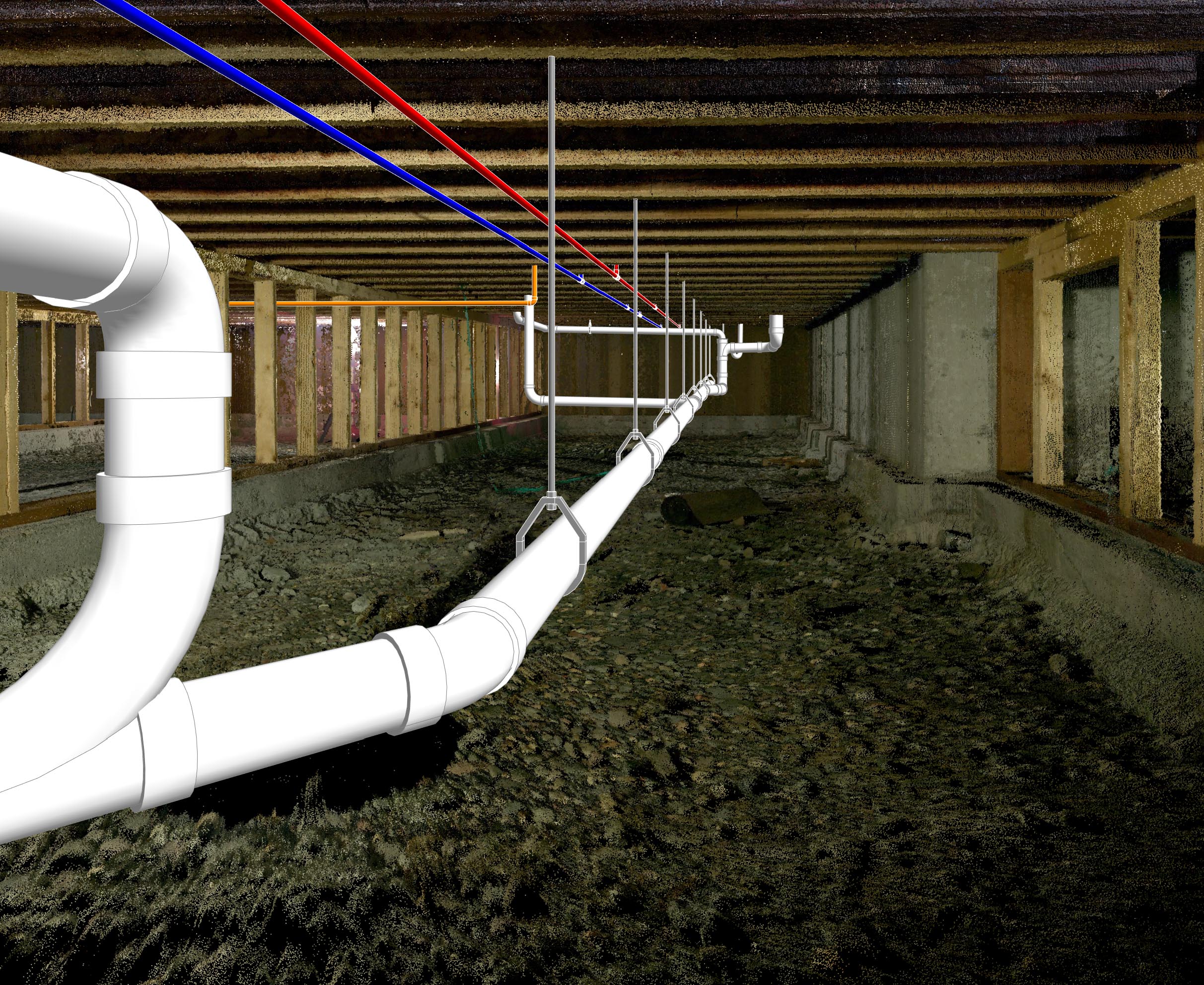

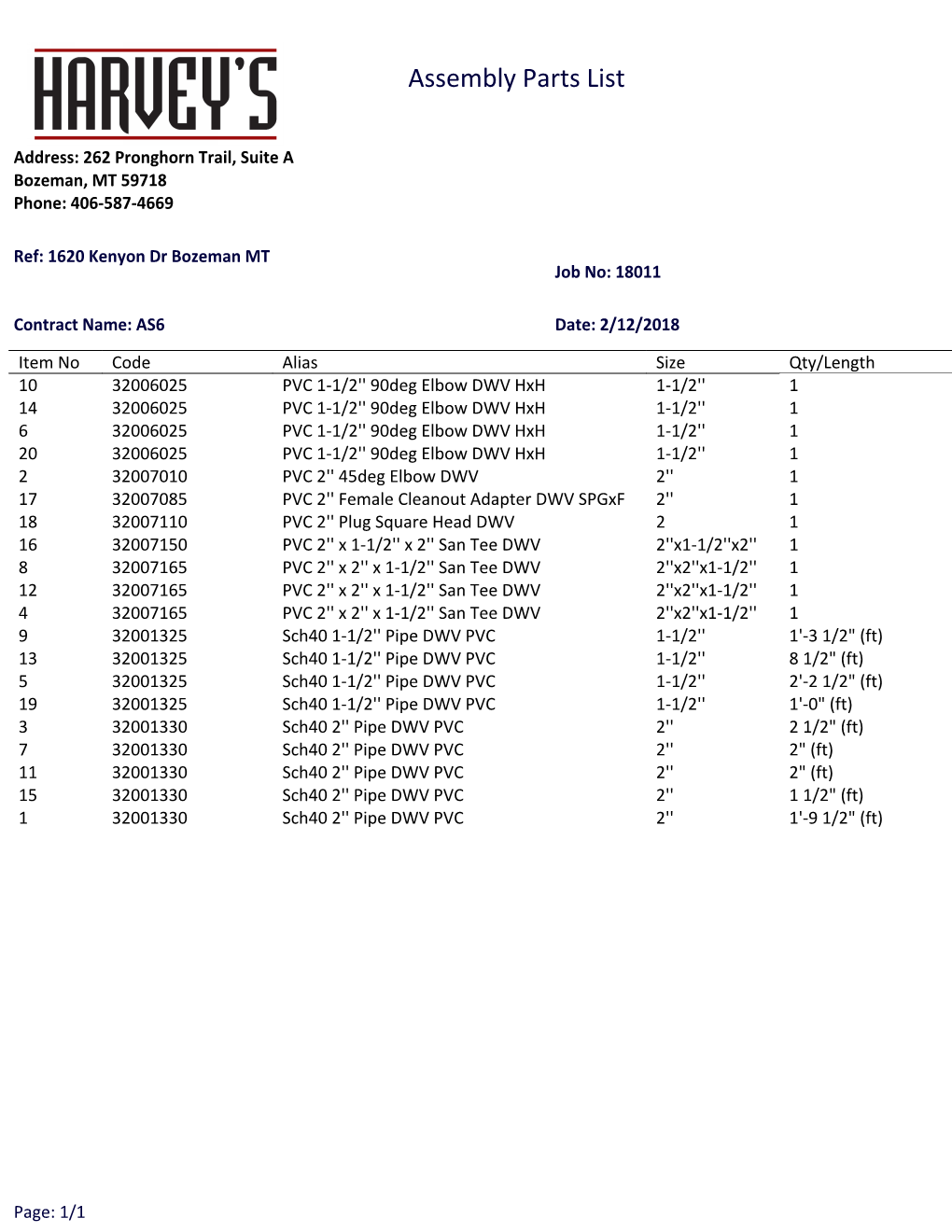

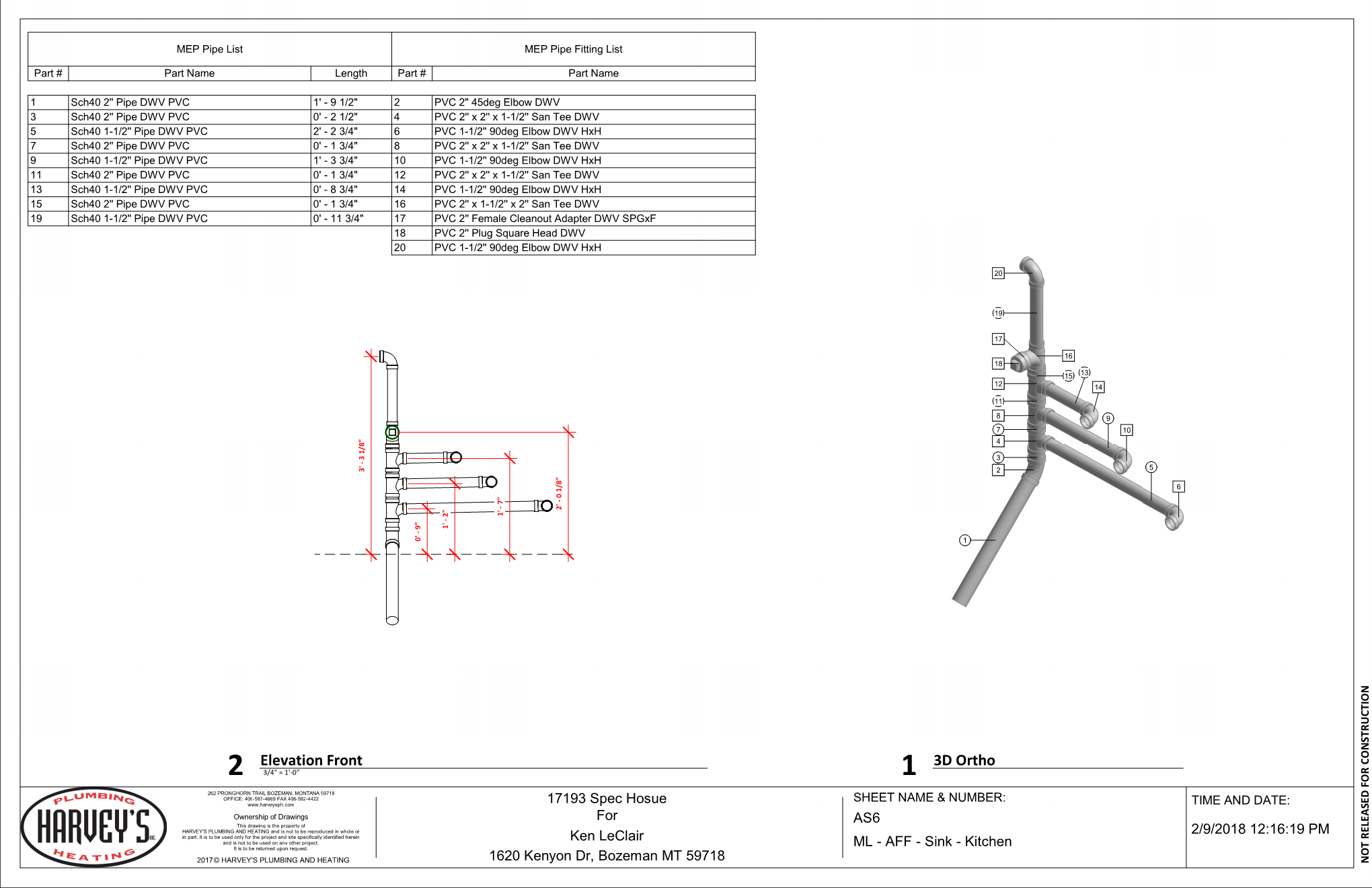

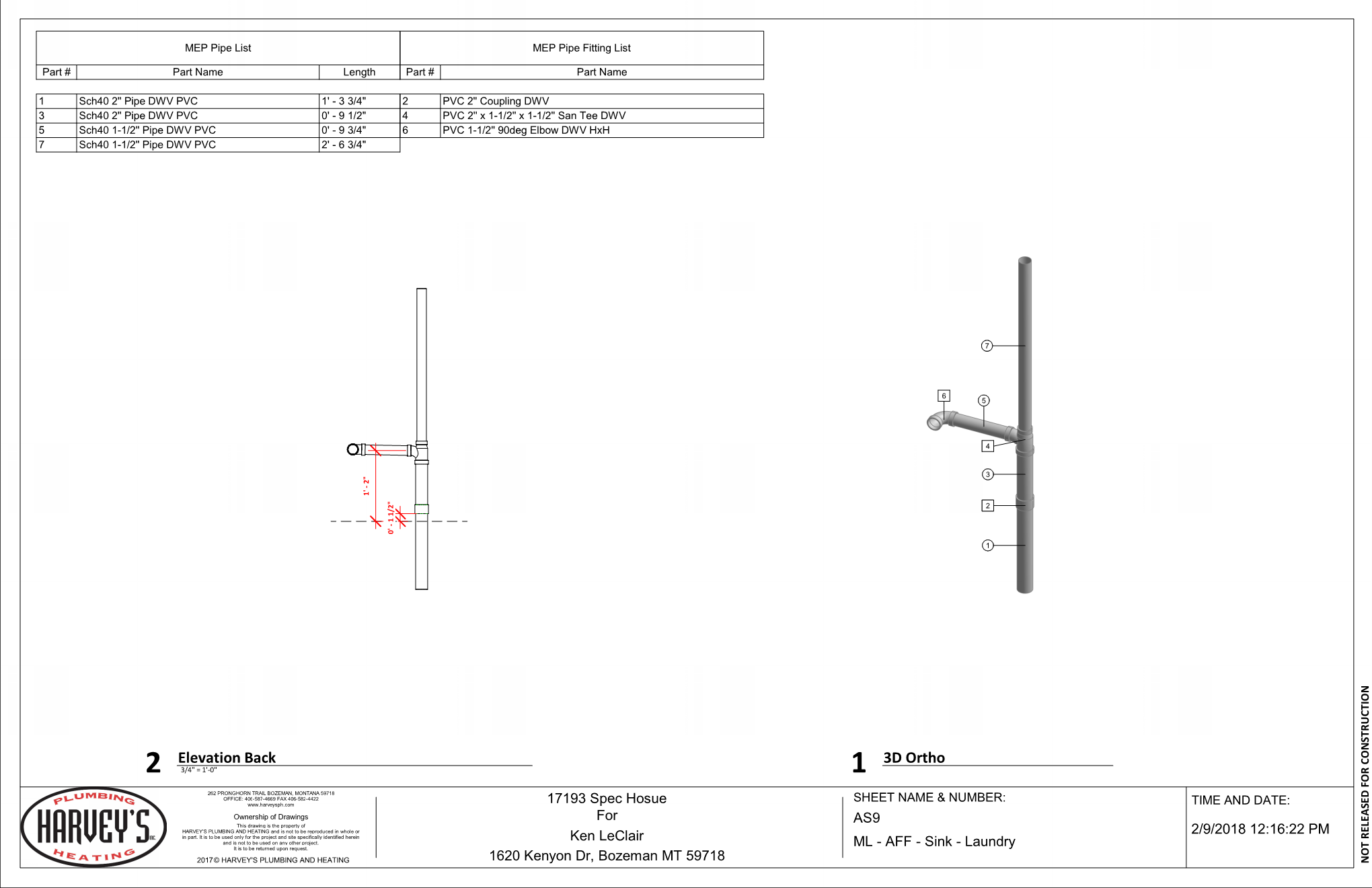

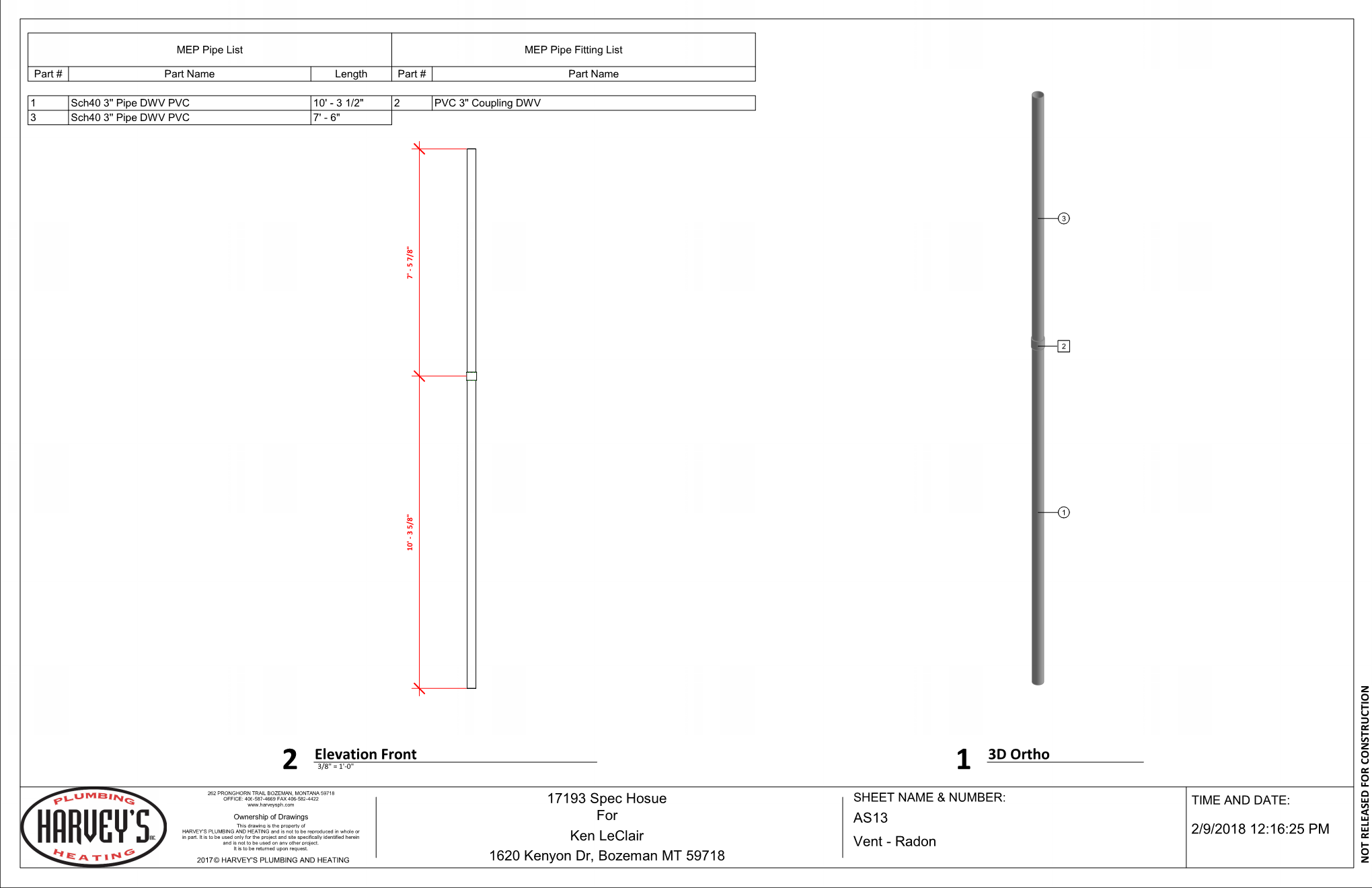

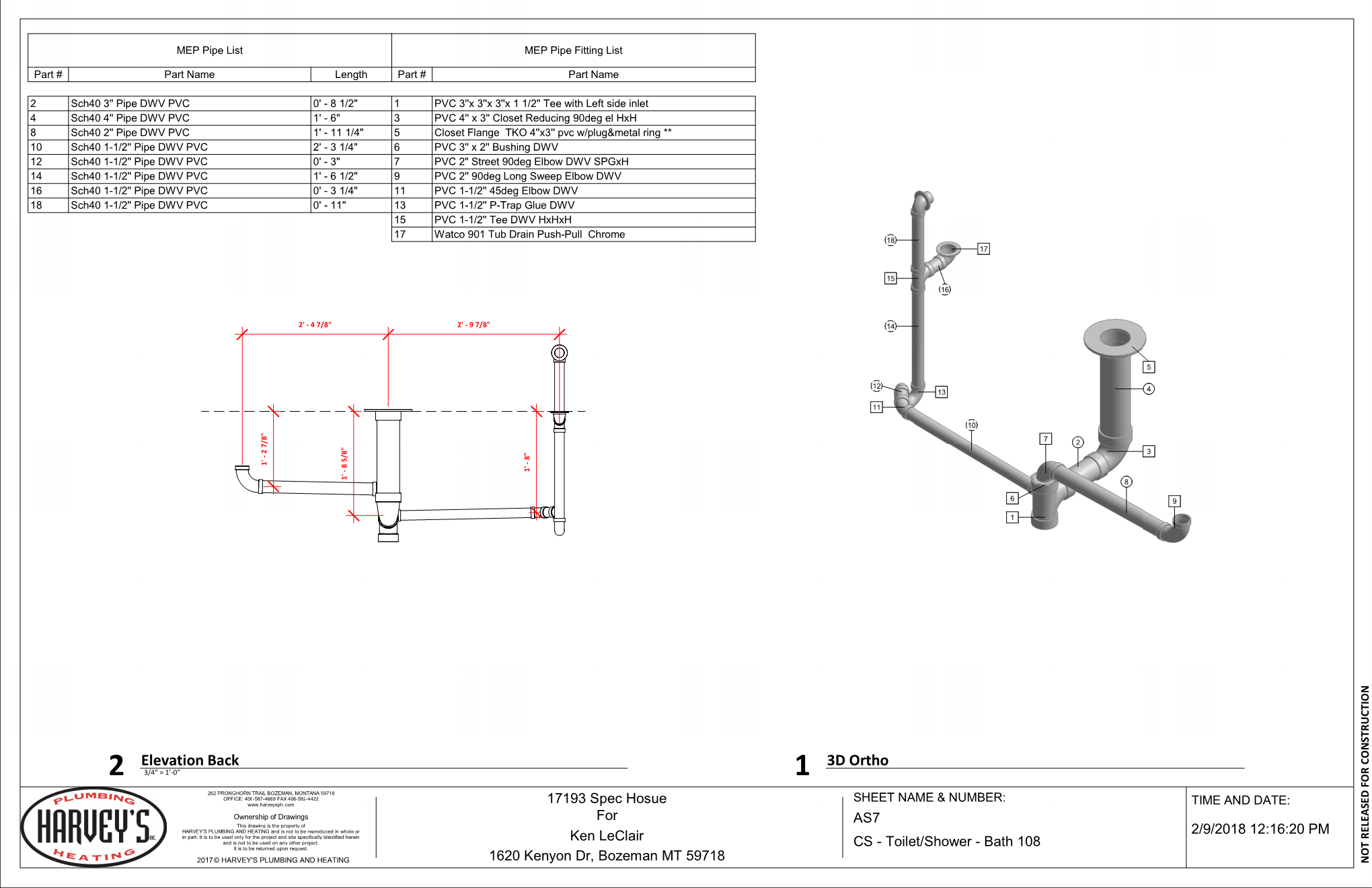

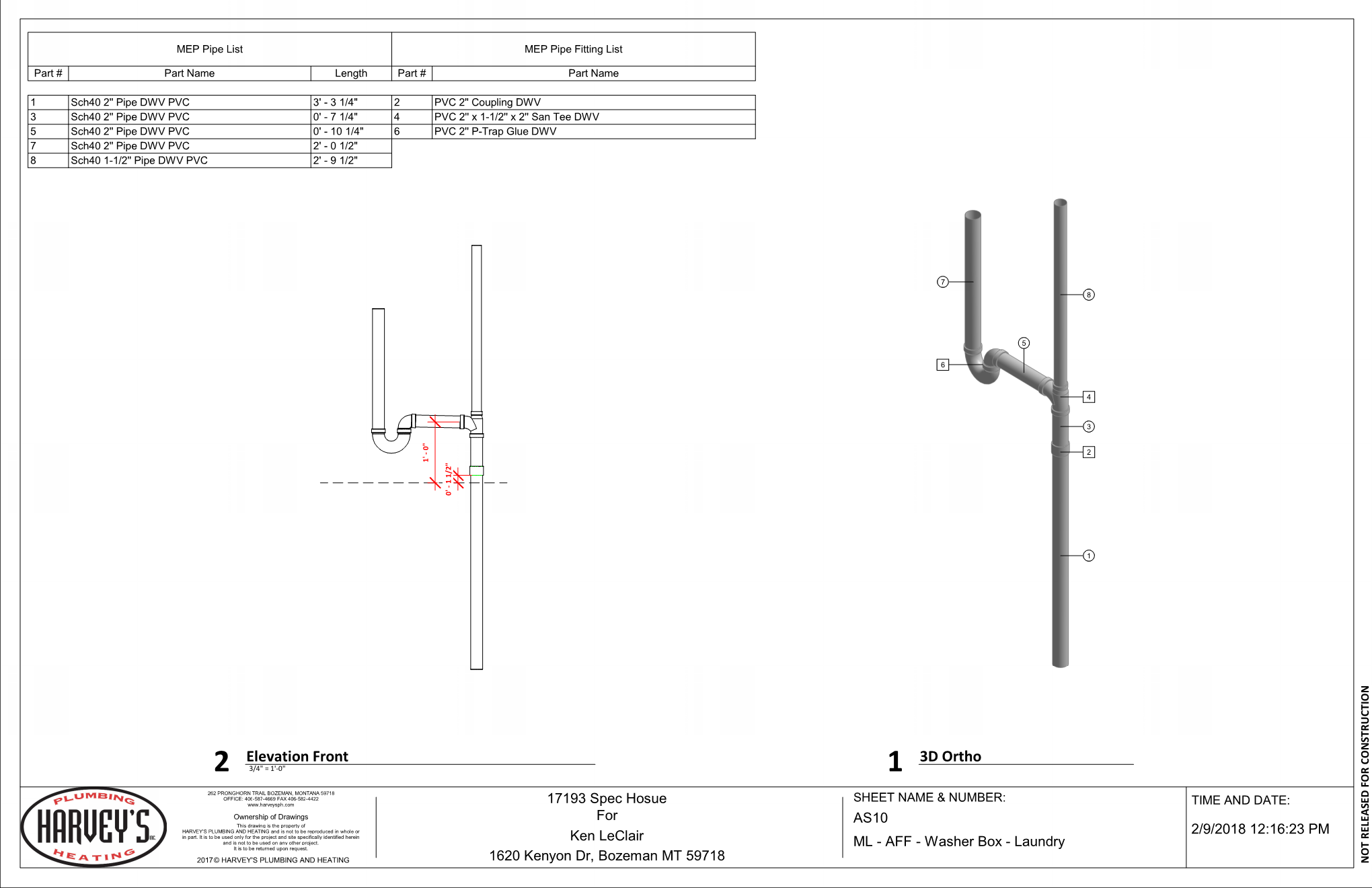

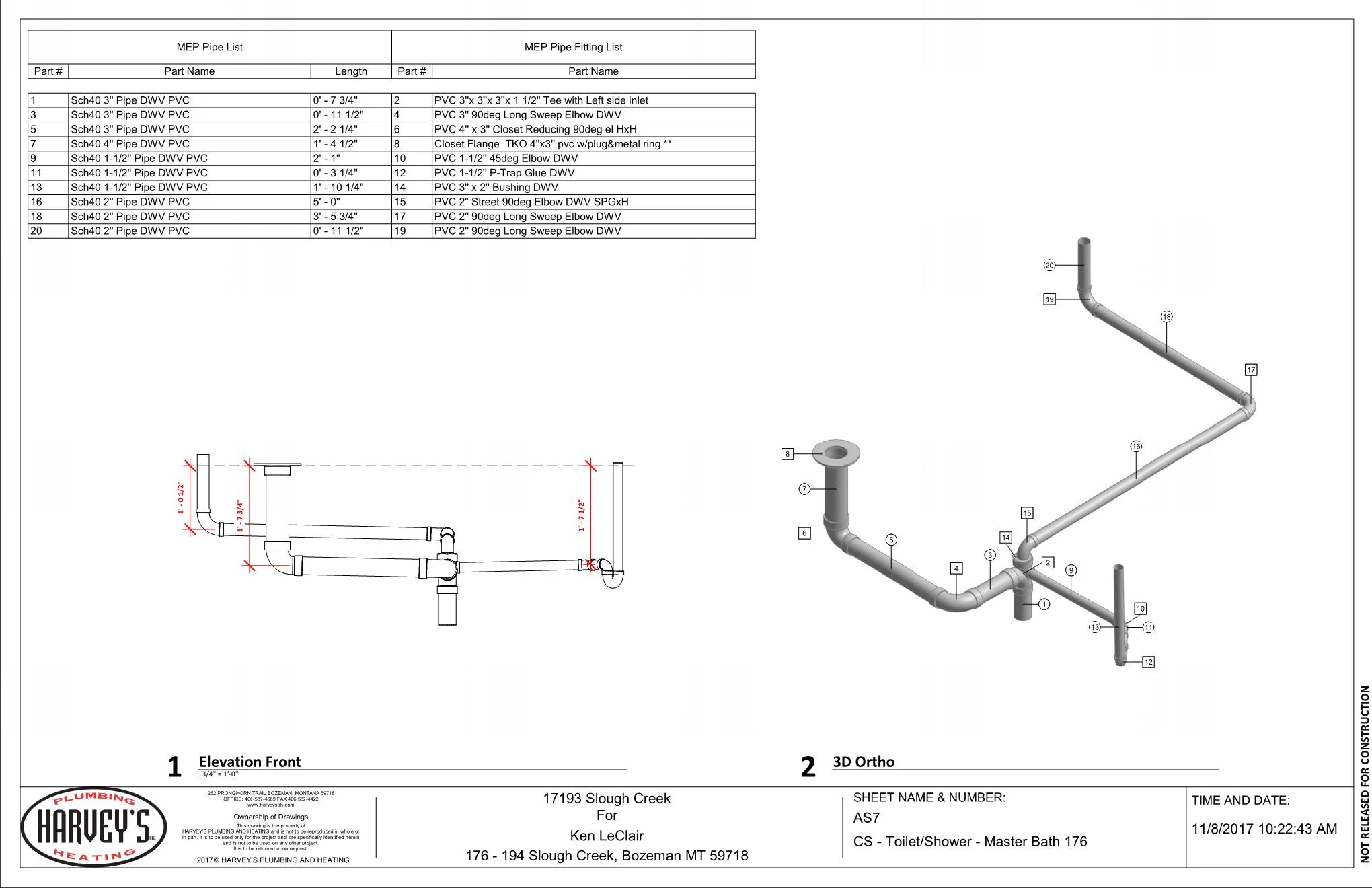

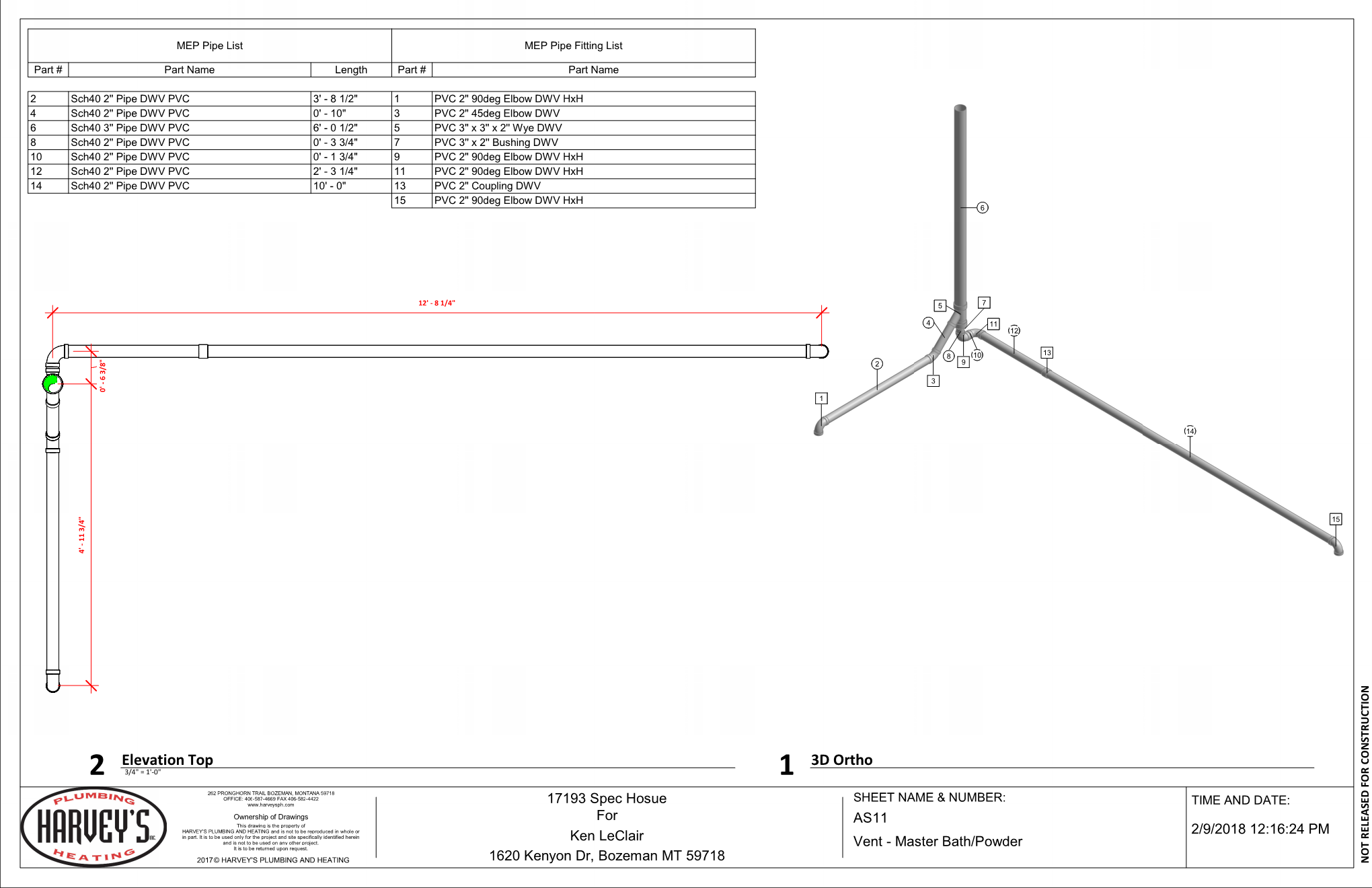

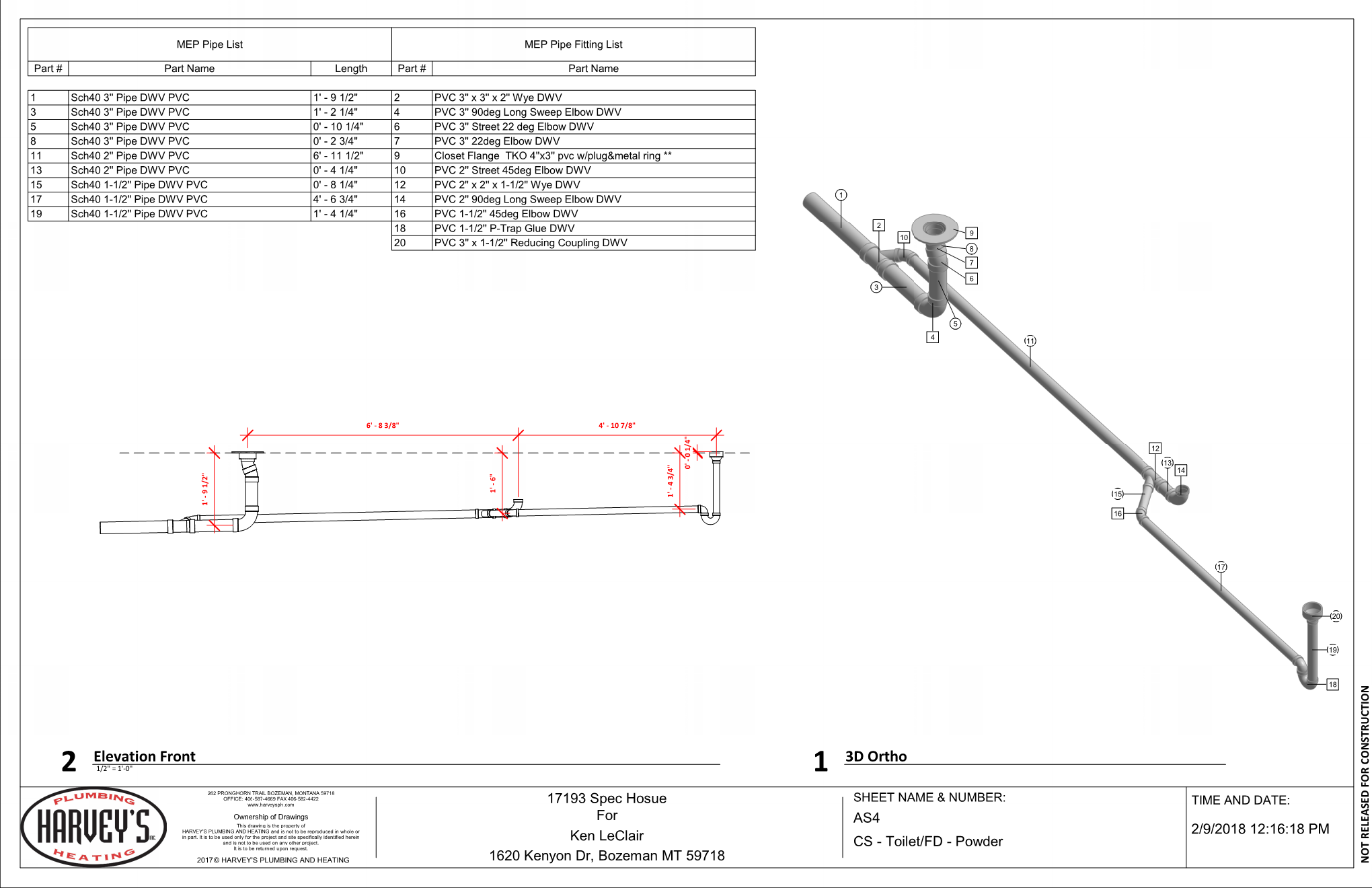

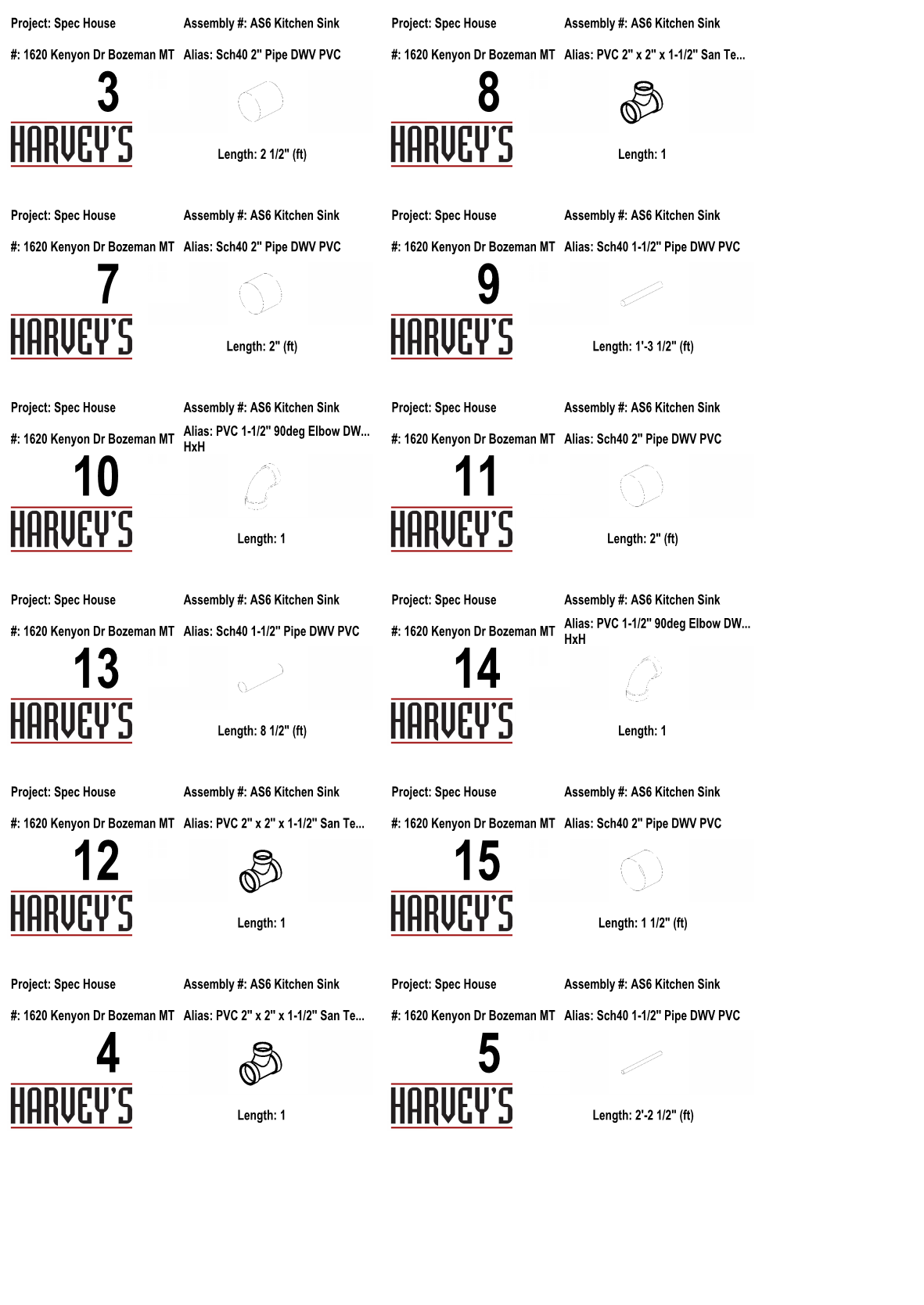

Underground Drainage, Waste, and Vent Fabrication

At Harvey's we strive to be the best at what we install. With our tried and tested approach we're focused on design to fabrication installations. It's important to us that the systems in the homes we install are well thought out and functional.


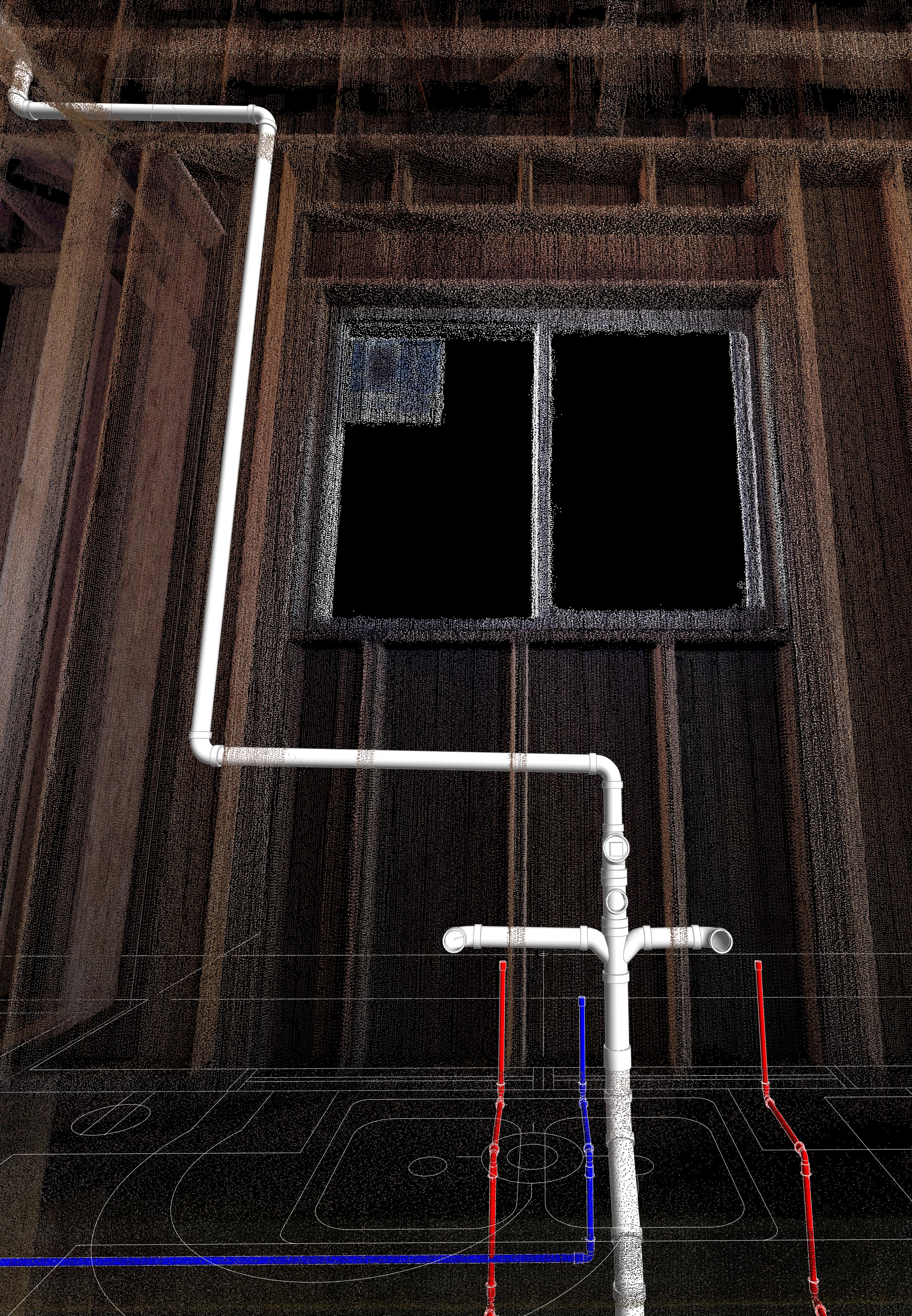

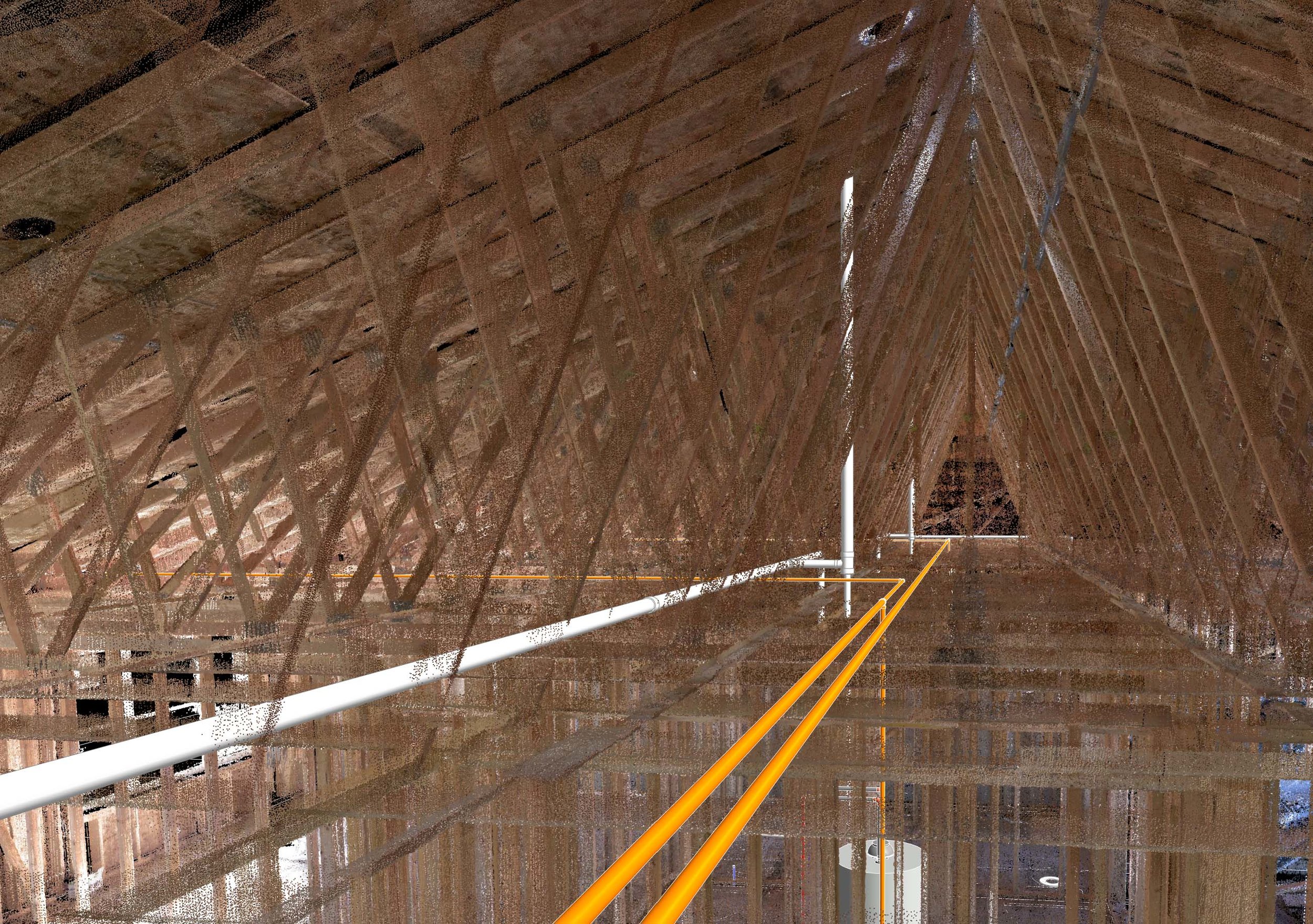

Leica BLK360 Laser Scanning

Harvey's utilizes a tried and tested approach for laser scanning as built conditions for Revit/AutoCAD coordination and fabrication. The laser scanner allows for rapid documentation of all systems installed for documentation of all systems.
